RFID Reader Head 0-70mm Read Write Range with RS-232 LED Display IP67 M30X1.5
Product Description
1. Advantages:
1>. High protection level and strong corrosion resistance, can be used in harsh industrial environments
2>. High reading and writing speed, speeding up factory production rhythm and improving production efficiency
3>. Supports RS232, RS485, Modbus RTU communication, and can be quickly integrated into industrial networks such as TCP, Modbus TCP, PROFINET, EtherCat and Ethernet/IP with our Gateway Module.
4>. High stability and reliability, 7*24h operation
 | Characteristics |
Design
| 1. LED status display |
| 2. Power supply and communication interface |
| Area of application | Identification tasks on small assembly lines in harsh industrial environments. Mainly used in 3C, new energy and other industries |
2. Electrical Interface

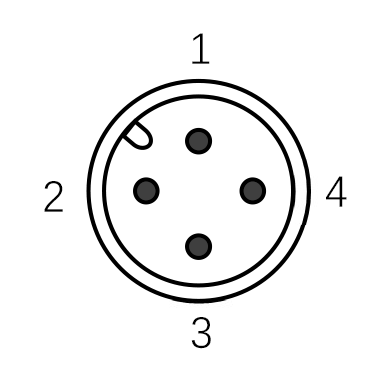

KRH-M30G with RS-232 interface, using a 4Pin-M12-ACODED-Male connector, the pin assignment is shown below.
 | Pin | Assignment | Description |
| 1 | +24V | Power supply positive |
| 2 | TX | RS-232 TX |
| 3 | 0V | Power supply negative |
| 4 | RX | RS-232 TX |
3. LED operating display
The operational statuses of the reader are displayed by the LEDs. The LED can adopt the colors blue and the statuses off, on, flashing.
| Name | Color | State | Description |
| SYS | Blue | Off | The reader is power off. |
| On | The reader is powered on and working properly. |
| 20Hz flashing | Tags was detected in the main identification area (RSSI signal is the strongest). |
| 8Hz flashing | Tags was detected in the secondary identification area (RSSI signal is medium). |
| 4Hz flashing | Tags was detected in the critical identification area (RSSI signal is weak). |
| 2Hz flashing | Valid instructions were received and executed successfully |
4. Reliable identification area
The tag should be in the center area of the sensing range as shown below.
5. Metal-free area
The KRH-M30G can be flush-mounted in metal. Allow for a possible reduction in the field data. To avoid any influence on the field data, the distance "R" should be kept to ≥40mm.
In order to avoid potential conducted interference, it is recommended to use nonmetallic brackets to cut off the transmission path of conducted interference.
6. Minimum distance between KRH-M30G readers
KRH-M30G side by side,to avoid any influence between the readers, the distance "D" should be kept to ≥80mm.
KRH-M30G face-of-face, to avoid any influence between the readers, the distance "D" should be kept to ≥150mm.
7. Technical Specifications
| Model No. | KRH-M30G-R2 |
| Radio frequencies |
| Operating frequency | 13.56MHz |
| Antenna | Integrated |
| Read /Write range | 0~70mm(Related to the tags) |
| ISO standard | ISO 15693 |
| Electrical Data |
| Supply voltage | 9~30VDC |
| Current consumption | ＜60mA@24V |
| Communication interface | RS-232 |
| Transmission speed | 9600~115200 bps |
| Transmission distance | ＜10m |
| Connector | 4Pin-M12-ACODED-Male |
| Permitted ambient conditions |
| Operation temperature | -30℃~+70℃ |
| Storage temperature | -40℃~+85℃ |
| Degree of protection | IP67,according to EN 60529 |
| Shock resistance | 7M2,500 m/s2,according to EN 60721-3-7 |
| Vibration resistance | 7M2,200 m/s2,according to EN 60721-3-7 |
| Torsion and bending load | Not permitted |
| Mechanical specifications |
| Housing Material | Brass nickel plated (metal) + Nylon (plastic) |
| Housing color | Matte silver (metal) + Black (plastic) |
| Weight | About 70g |
| Dimensions | M30 x 1.5/L=65mm |
| Housing shape | Tubular |
| Thread code | M18 x 1.5 |
| LED display | 1 x LED, blue |
| Standards, specifications, approvals |
| Proof of suitability | CE FCC RoHS WEEE |
